How to use end loops & cup chain connector

· All the holes on the sides of all the different sizes and shapes of cup chain settings are exactly the same, so these end loops and cup chain connector will fit any kind of cup chain you use.
· You’ll find that it is easier to use this small 6X3 end loop when you have a 24ss / 29ss or 39ss settings, because when you use the sharp nose plier tool, it can easily hold the end loop even in such small settings.
· A simple tip to help you place the end loop or connector through the hole in the setting:
Hold the plier tool and move it from side to side weal pushing it down and you will see that it starts to go through.





When you need a small loop at the end of a cup chain, use the end loop:

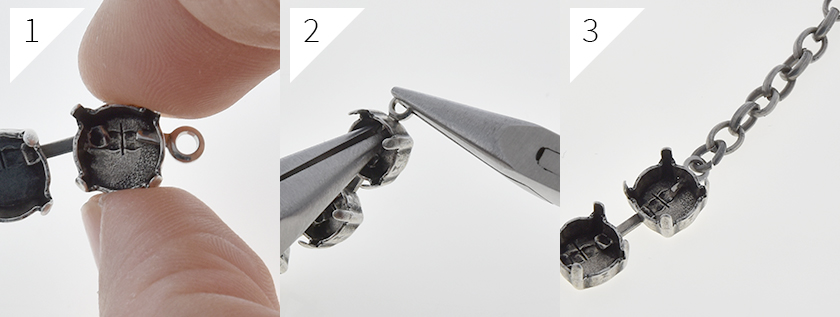

END LOOP 6X3mm - sku 5000851
1. Slide the end loop through the hole in the setting, it will easily slide in.
2. Hold both sides of the end loop with plier tools, now give a half twist to the metal bar the is inside the setting - now the end loop can’t go out of the hole.
3. Now you can use this loop to connect chains or any other elements you like.

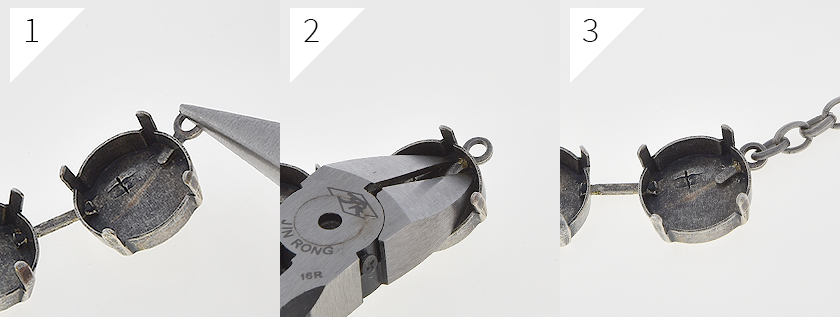

END LOOP 7X4 mm - sku 5000645
1. Use the plier tool to insert the end loop through the hole in the setting, it supposes to be hard to do, so it will sit very tight inside the hole.
2. Use a cutting or a plier tool to pinch the metal bar that is inside the setting, to deform its shape so it will not slip out from the hole.
3. Now you can use this loop to connect chains or any other elements you like.




When you need to connect two cup chain parts use this connector:



CUP CHAIN CONNECTOR - sku 5003726
1. Insert the bar through the hole in the setting, it supposes to be hard to do, so it will sit very tight inside the hole.
The loop at the top of the bar is just so we can hold it when coating, so you can use the cutting tool to remove it.
2. Pinch the metal end that is in the setting, to deform its shape so it will not slip out from the hole.
3. Insert the other end of the bar through the hole of the other setting and again, pinch the metal end, make sure it holds the cup chain well.
